Spindle and VFD Inverters for CNC Milling Machines (Milo by Millennium Machines) (110v and 220v)

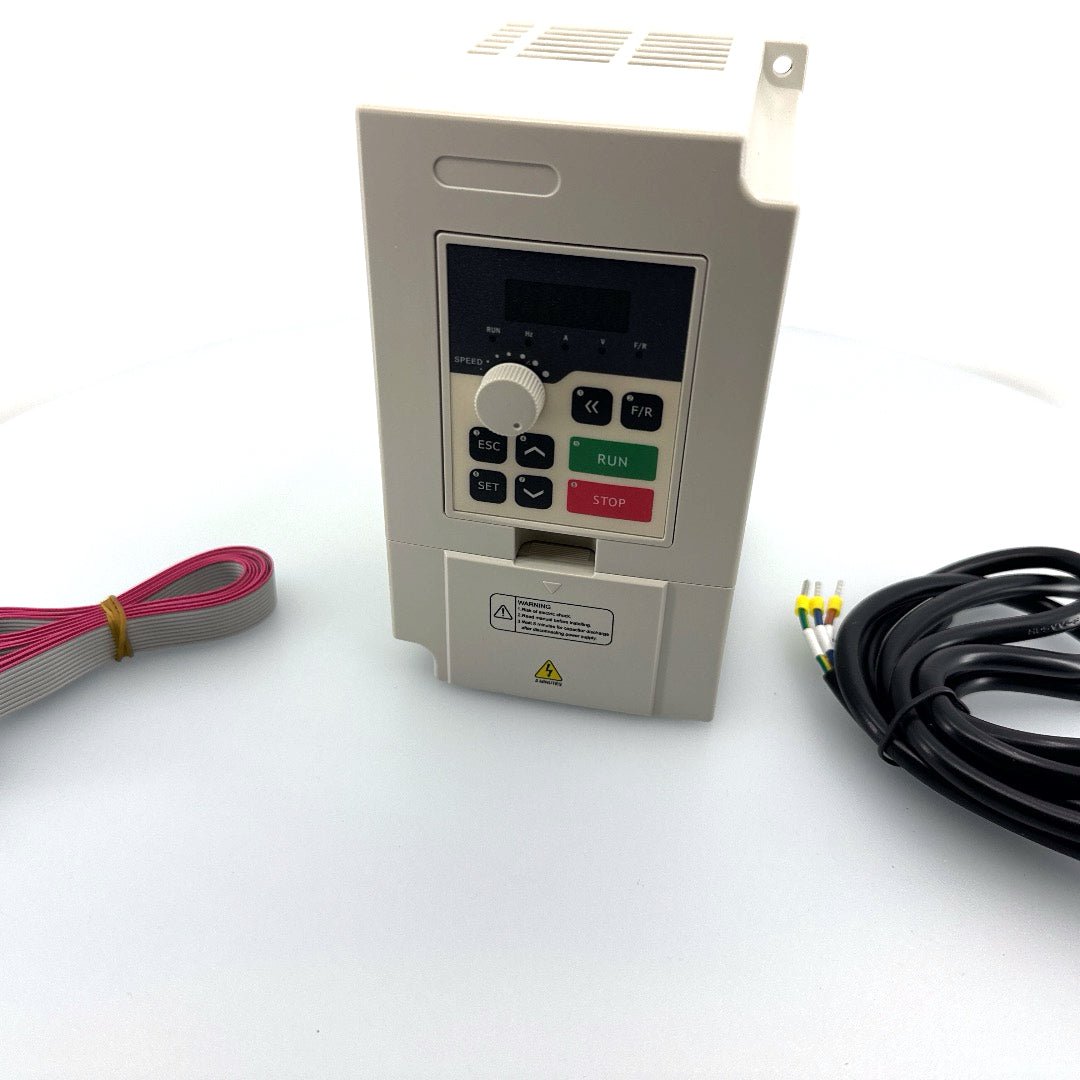

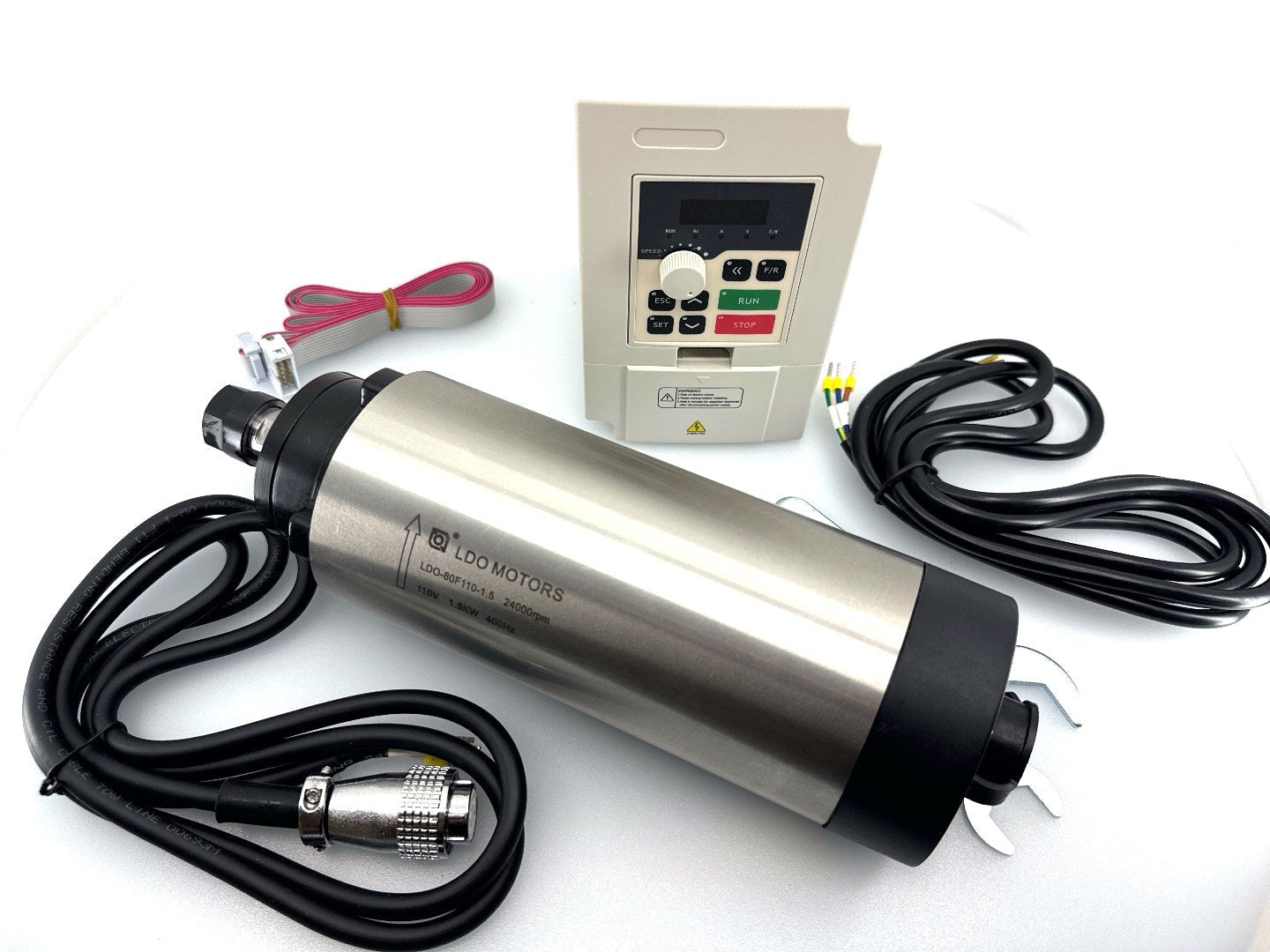

This is a listing for a Spindle and/or Inverter commonly used for CNC machines. Both of these are provided by LDO Motors (used for the Milo v1.5)
The combination of a 110v spindle and VFD is an air cooled 1.5Kw option able to be run on most American standard wall outlets. (technical specifications being uploaded soon.)
220v spindle technical specifications:
| Model | LDO-GDZ-80F-1.5 |
| Size | 80x195mm |
| Voltage | 220V |
| Current | 8A |
| Frequency | 400Hz |
| Performance | 1.5kW |
| Rotation speed | 24 000 rpm |
| Max. Torque | 0.59Nm |
| Collet | ER16 |
| Tension clamp | 1-10mm |
| Incl. | Air cooling |
