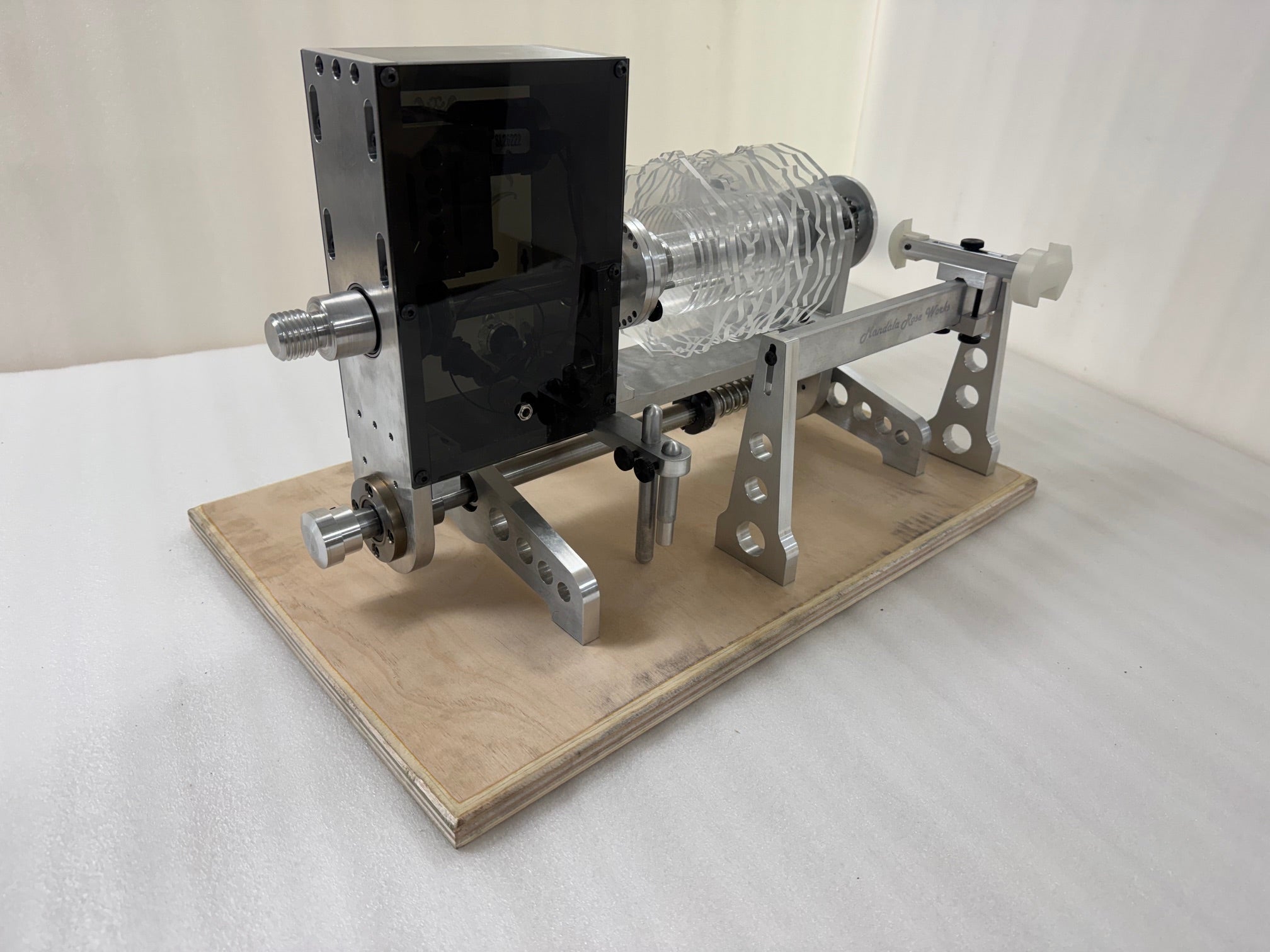

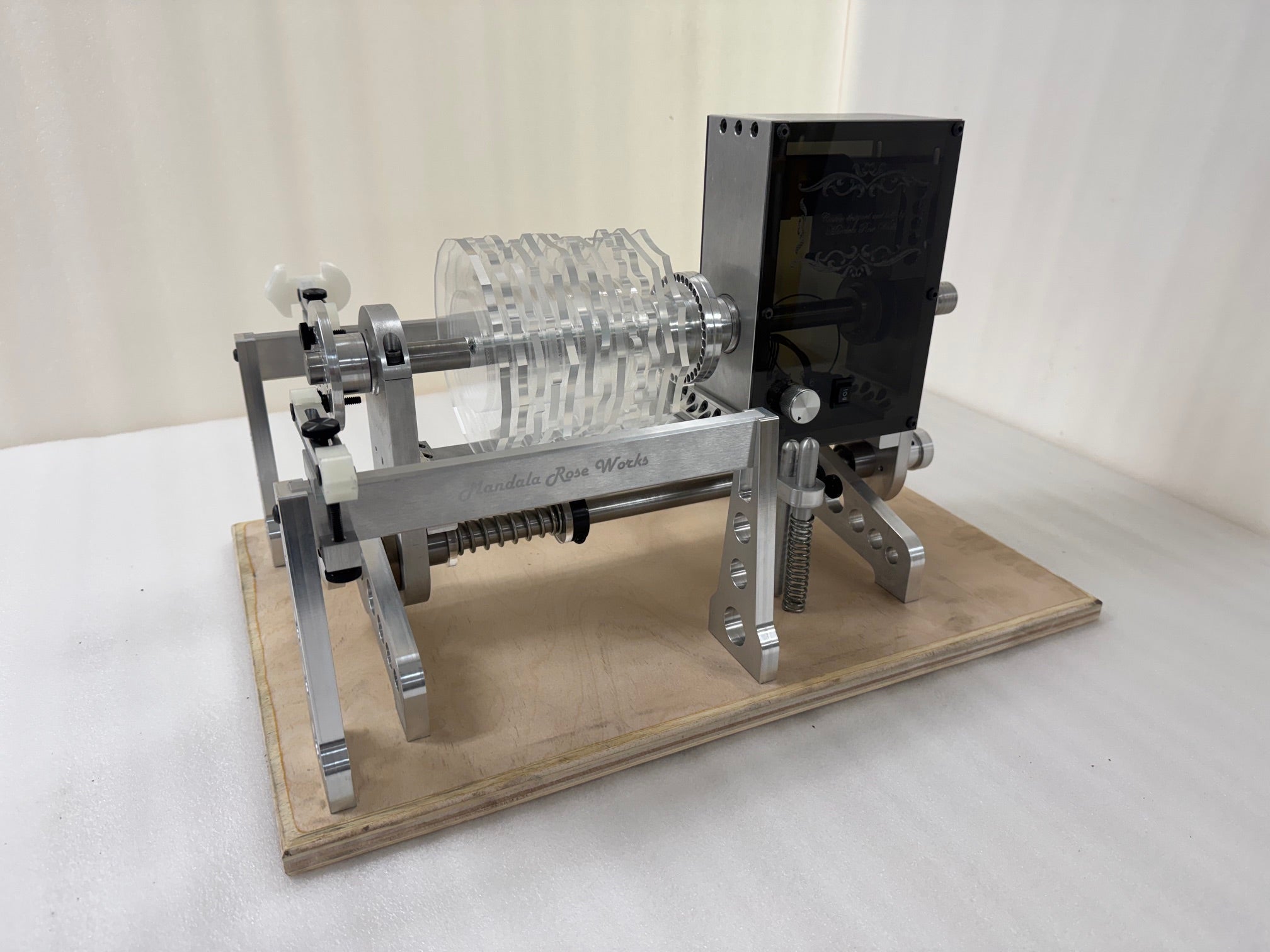

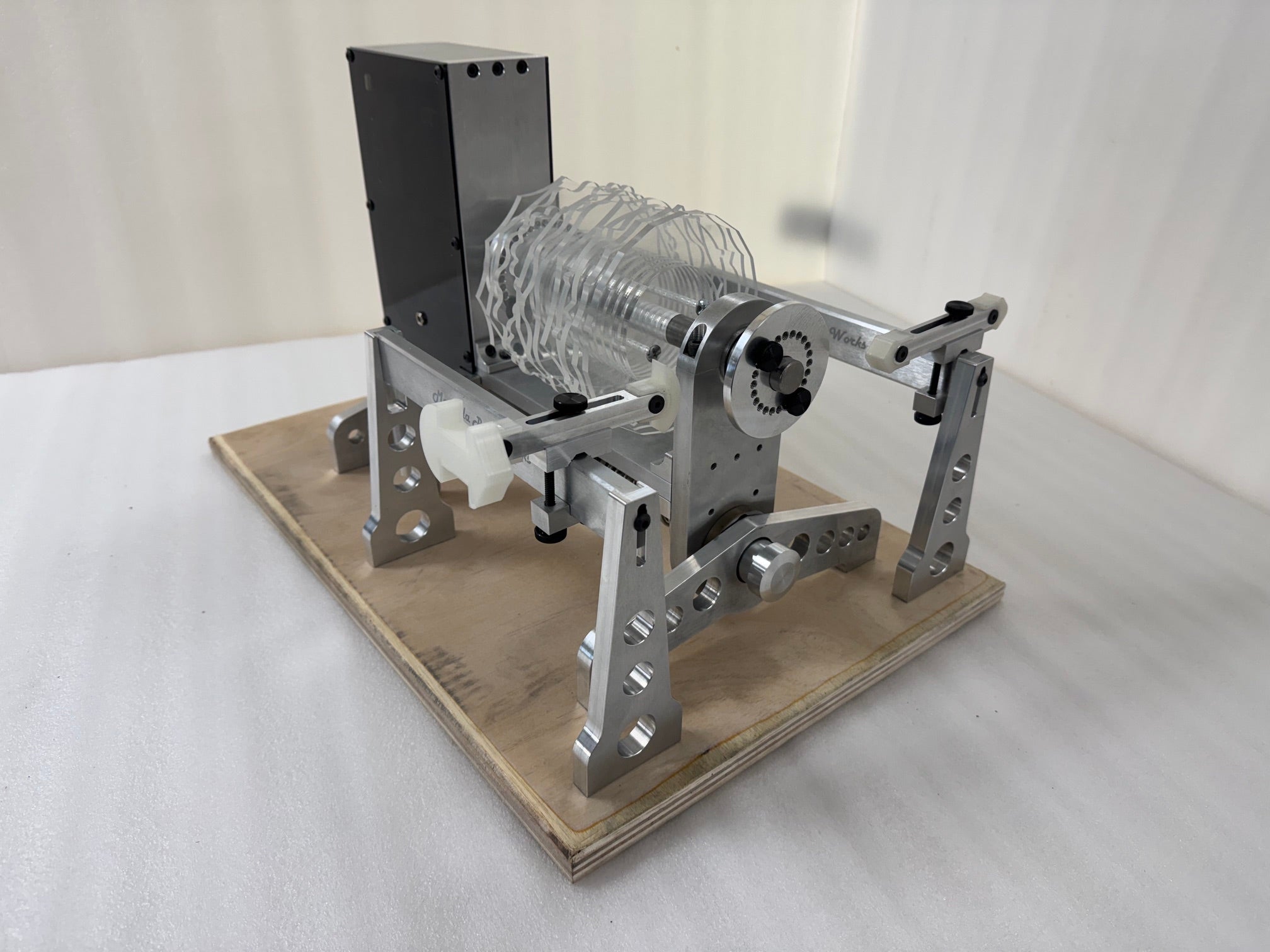

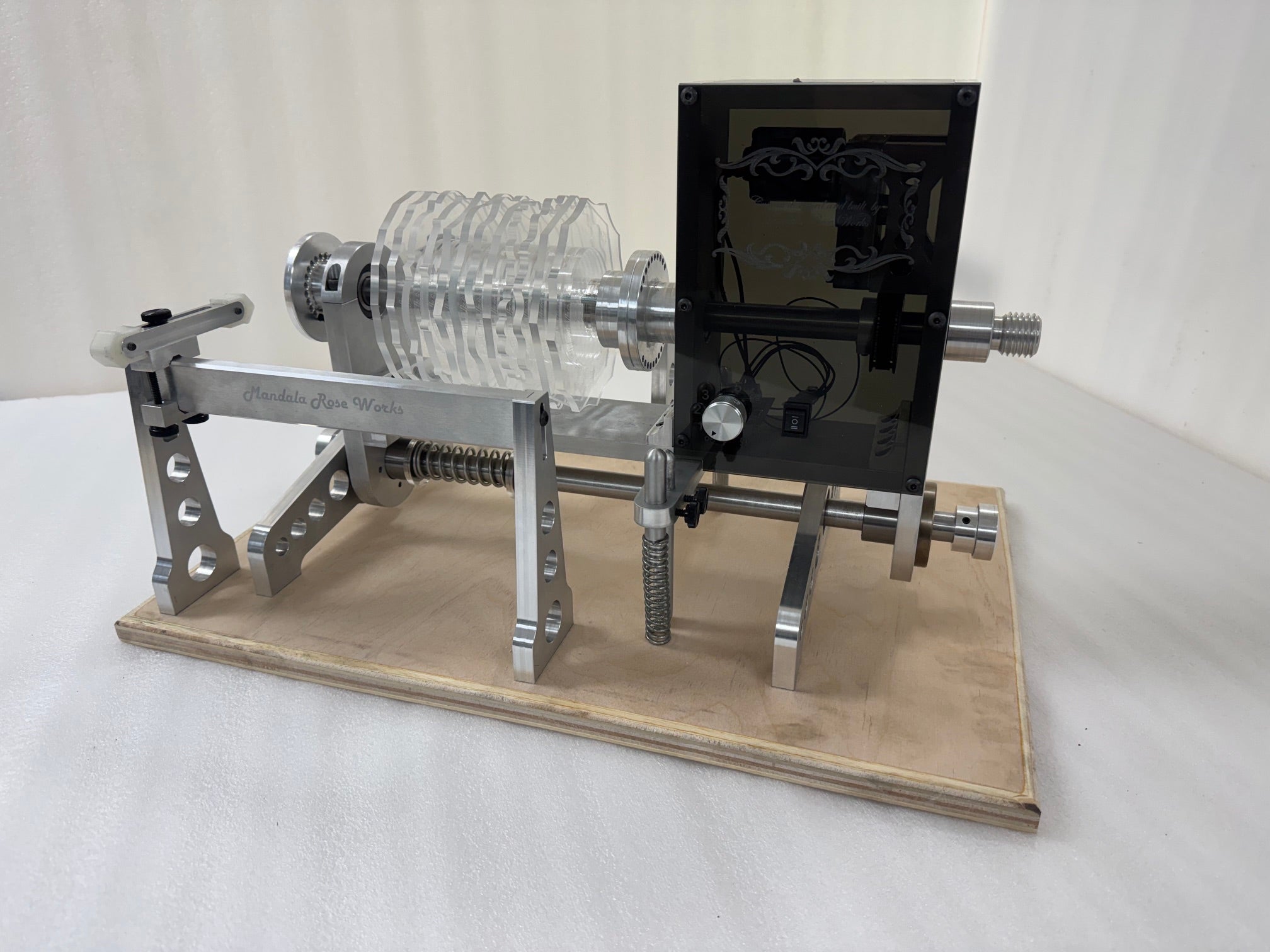

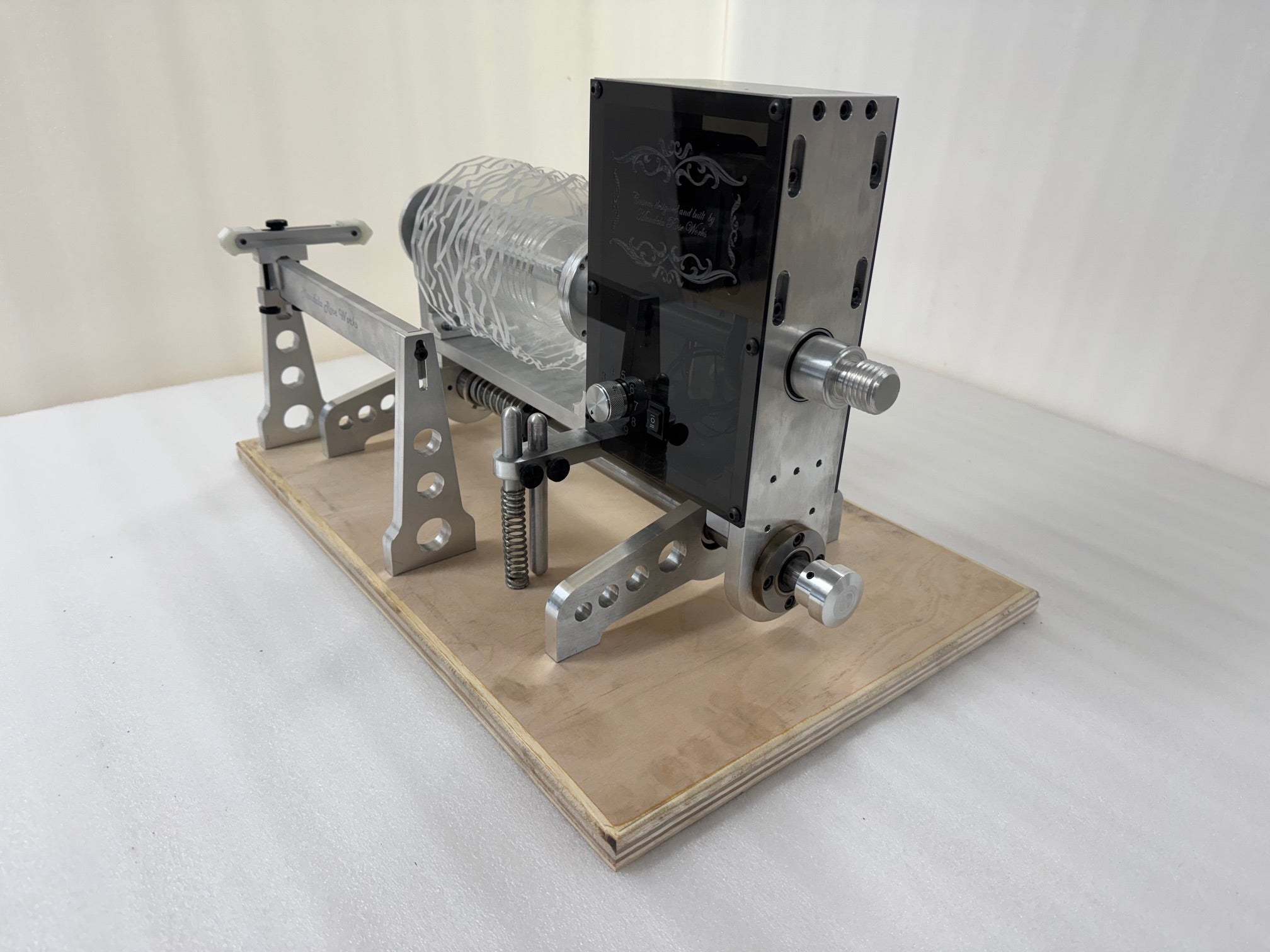

Mandala Rose Engine
Our starter set gets you up and running quickly, providing you with the Mandala Rose Engine and our Universal Cutting frame. The machine is manufactured of 6061 aircraft aluminum and steel. Some of the advanced features included in the base model of the Rose Engine include...
Order Status - PLEASE NOTE, the delivery time for this product once ordered is 4-8 weeks! This WILL NOT ship immediately, as the units have to complete final assembly, testing and packing before shipping. Please choose Ground shipping as it will be the most economical.
Small Shop Friendly - At 30 pounds it makes it easy to store when not in use.
Pumping system for 3d Turning and decoration is standard on the unit.
360 Degree Phasing assembly allows you to phase the cuts of your rosettes in 1 degree increments.
Motorized drive system with variable speed (no hand cranking necessary)
12 Acrylic Rosettes Included allowing you to make numerous unique designs out of the box. The Rose Engine will also come with 1 3d Rosette.
Rubbers - Your Rose Engine will also come with 7 standard 2d rubbers, and 1 3d pumping rubber.
Removable rosette barrel allows you to change out rosettes in a matter of minutes.
Standard 1" x 8 tpi Spindle enables you to use most standard lathe chucks on the market today.
Dual Rubber Rails makes turning from either side of the Rose Engine quick and easy, and it also makes great handles for moving and positioning the machine.
The Single Rosette Mount allows you to mount up additional rosettes without having to remove the barrel assembly. You can simply slide the special rosette on the back of the Rose Engine and go to work turning.
Cutting Frame - If you order the cutting frame with the Rose Engine at the same time, you save yourself $195 on the entire kit as the Universal Cutting Frame is normally $525.
Built in Speed Control is integrated into the motor box of the Rose Engine. It supports forward and backward rotation as well as variable speeds. Jogging is accomplished by lightly adjusting the speed dial for the spindle motor.
Rose Engine comess installed on a 3/4" plywood mounting board. You can either use this board, or remove it from the board and use the board as a template to drill and tap holes onto your own build surface.
Spindle motor is an anti-backlash gear motor.
Cross Slide Table and Quick Change Tool Post is not included. You will have to source those on your own. You can look at Shars to see some recommended starter options.
Newsletter Updates
**** May 31, 2026 - Rose Engines Available for Ordering!
**** April 28, 2026 - Update Newsletter, Progress Report and Planned Sales Date
**** September 16, 2025 - Update Newsletter and Progress Report
**** Update 7/18/2025 - Fourth newsletter, see here.
**** Update 6/26/2024 - Third newsletter, see here.
**** Update 1/7/2024 - Second newsletter, see here.
**** Update 9/27/2023 - We have created a newsletter signup for you get more information on the Rose Engine and our progress in manufacturing another run of them. Please use the form below to sign up and keep on top of our progress. See the first newsletter here.
**** Update 7/14/2023 - Thank you for all the interest and sign ups. We have done a bit of redesign work to make the rose engine a little faster and better to manufacture. We have also sourced a new spindle motor which gives some nice performance boosts. We are working on programming up all the new parts, and will be producing a sample unit as soon as we get all the parts programmed. We will be doing a newsletter specifically for the rose engine which will include everyone who has signed up for restock alerts. This will let everyone know of our progress.
