SV08 Bed Adapter & Voron 350 Bed

We have completed testing and are accepting orders!

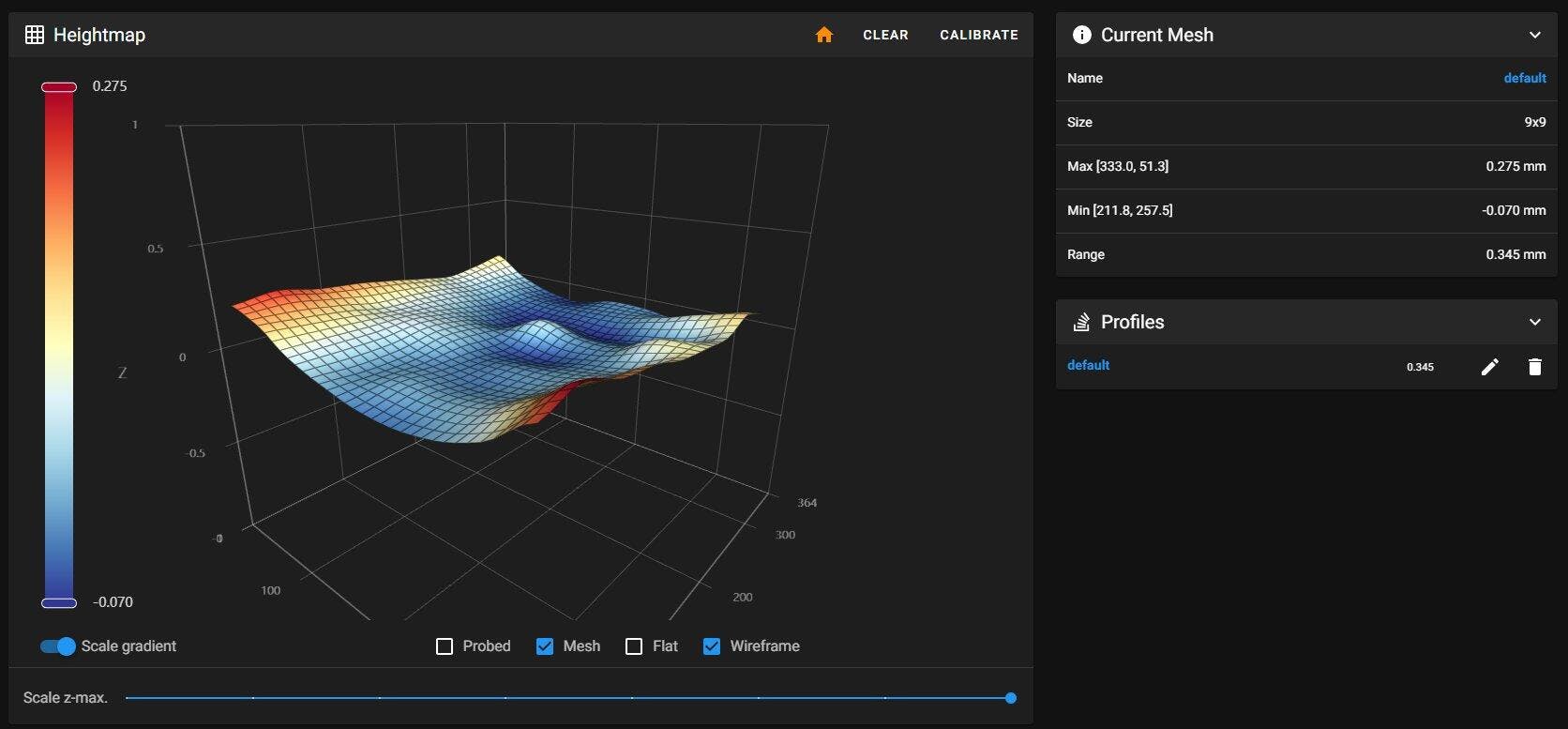

The Sovol SV08 printer is a very economical printer, but users have had issues with the waviness of the beds.  We have created the Sovol SV08 Bed Adapter which makes use of our Voron 350 Beds and gives you a kinematically mounted bed replacement solution for the SV08!

We have several options for you.  Our default configuration is the Voron 350 Ultraflat bed (flat to no more than 0.1mm out of flat), but you have the option to upgrade to the Voron 350 Magbed as well (also flat to no more than 0.1mm out of flat).   Please note, the magnets can and will interfere with a number of probes on the market.

In addition, we are also offering a budget bed which uses material straight from the metal supplier and is flat to no more than 0.25mm out of flat (and usually far better than that).

The adapter plate comes with:

• 3 150C N48SH Magnets
• 3 Pin Mounts
• Adapter Plate
• 12 Button Head m3x6mm Bolts
• 3 Button Head m3x10mm Bolts
• 3 Internally Threaded Balls for the Kinematic Mounting
• 2 Cap Head m3x20mm bolts used to lock the bed to the adapter plate if you have to flip your printer to work on it.
• The STL for increasing the height of the nozzle touch off button is here courtesy of Kriss at KB3D.

This bed is pre-assembled, you just need to supply the heater and magnet sticker if you do not order the magbed.

The magnets on the adapter plate help keep the kinematic balls in the channels, and it takes over 3000g of force to dislodge the bed from the adapter plate, so Tap will work just fine with this system.

Dimensions are:
- Bed: 355mm x 355mm x 9mm
- Adapter: 370mm x 370mm x 11mm (with the pin mounts installed)

We recommend heaters and flex plates from KB3D.  Also, special thanks to KB-3D for his live beta testing of the SV08 bed and adapter.  You can see his videos here!
Video1
Video2

Thanks to @xXDFAXx (Discord) 2jzswapper (YouTube) for the installation video available below.
